EX100

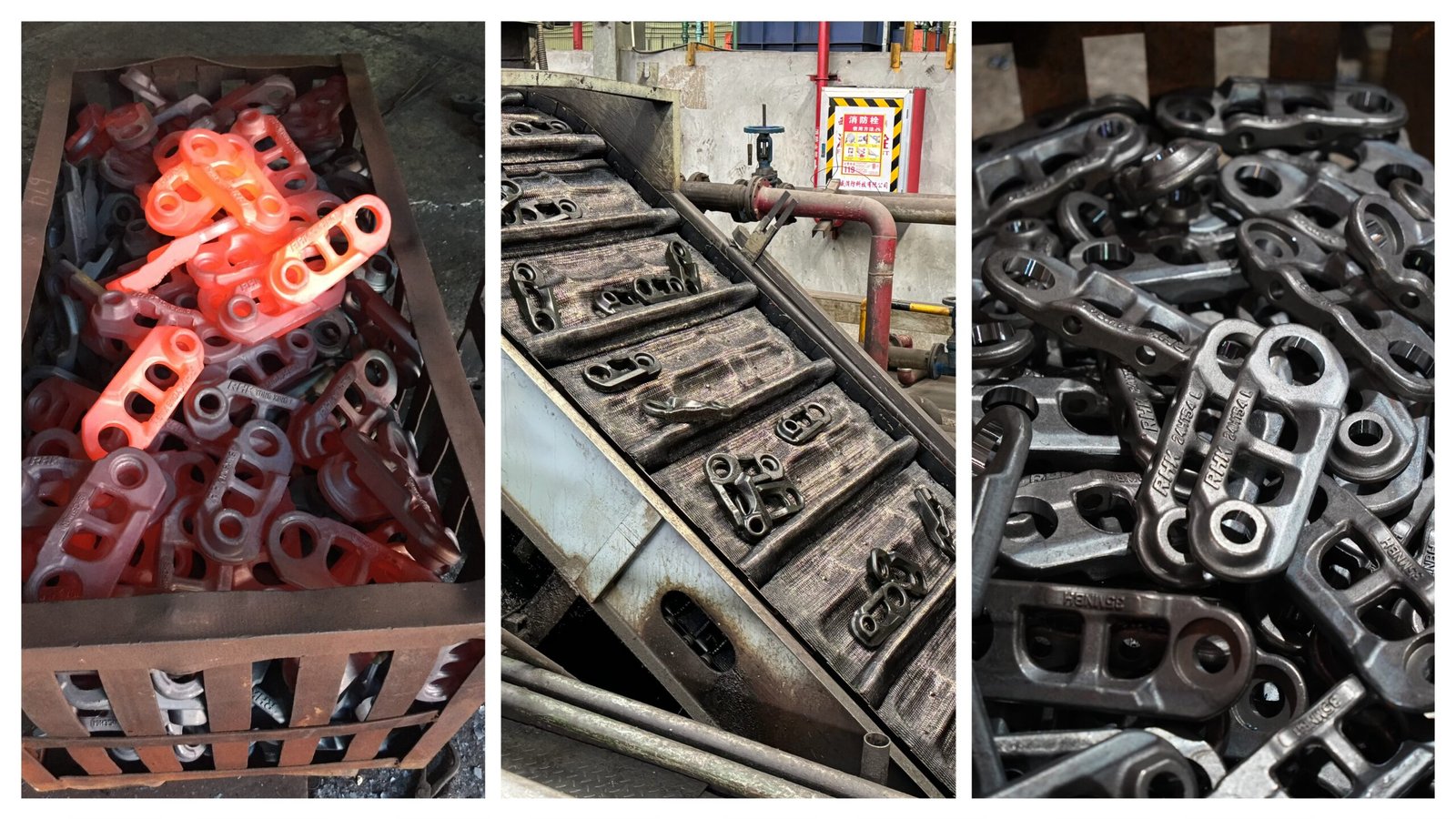

Forging & Heat treatment technology

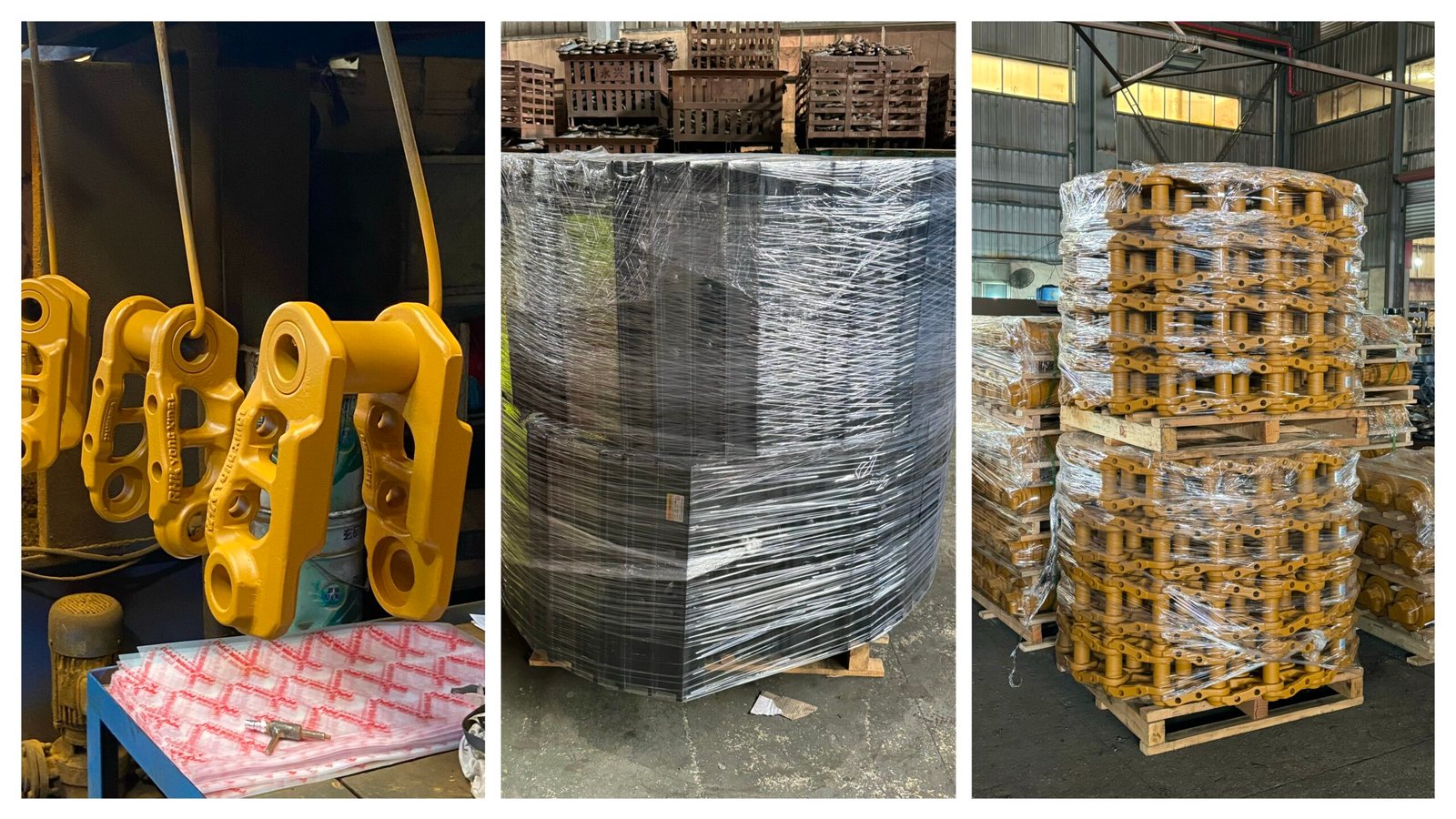

Product production & testing
EX100 - 图片 5
EX100 - 图片 6

EX100

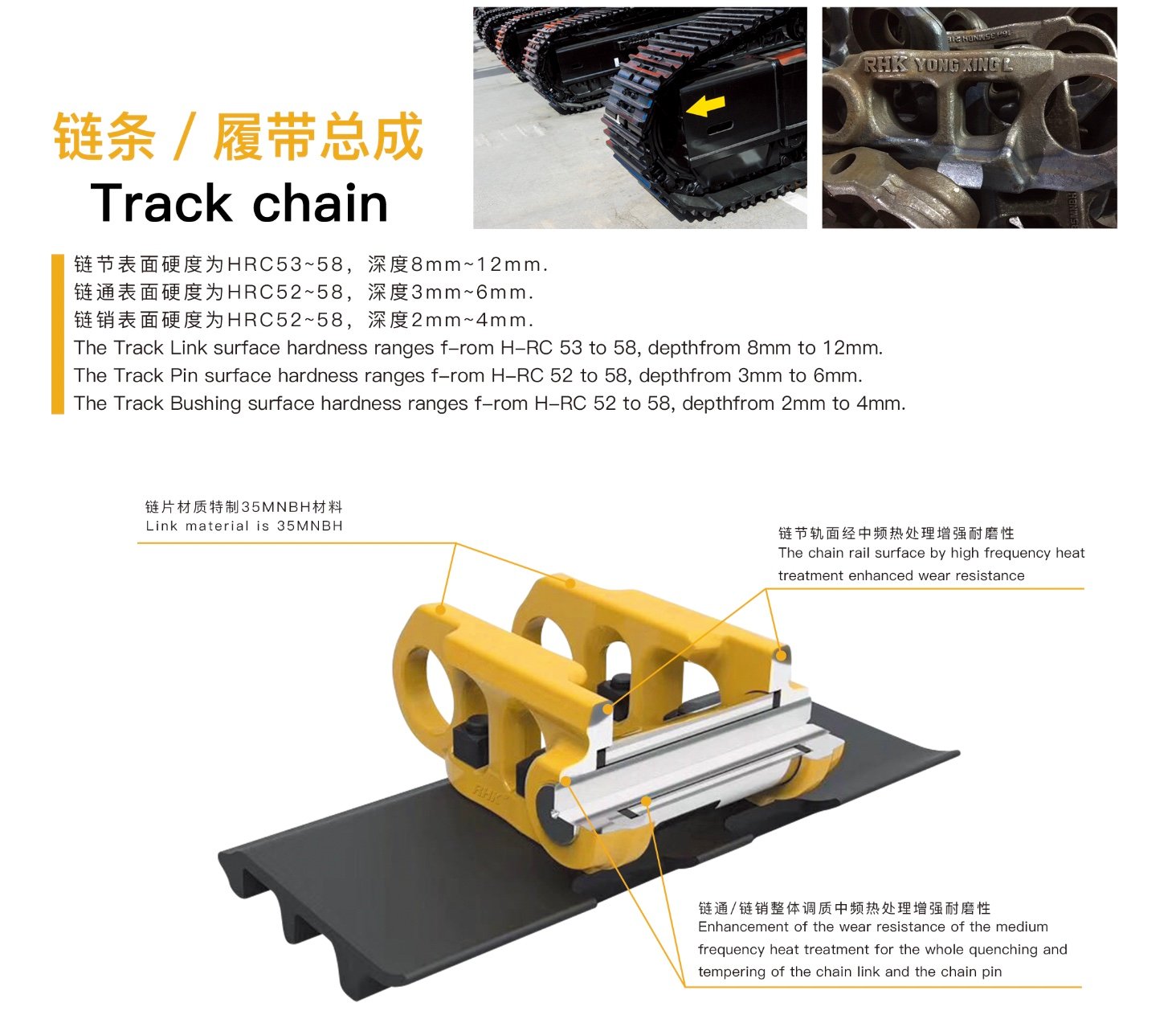

  • The Track Link material is 35MNBH
  • The Track Linkrail surface by high frequency heat treatment enhanced wear resistance
  • The Track Link enhancement of the wear resistance of the medium frequency heat treatment for the whole quenching and tempering of the chain link and the chain pin
  • The Track Link surface hardness ranges f-rom H-RC 53 to 58, depthfrom 8mm to 12mm.
  • The Track Pin surface hardness ranges f-rom H-RC 52 to 58, depthfrom 3mm to 6mm.
  • The Track Bushing surface hardness ranges from H-RC 52 to 58, depthfrom 2mm to 4mm.
分类： 标签：

Track links are vital components of the track chain system, enabling the excavator to move and navigate various terrains with ease.

The RHK track chain products by YONGXING MACHINERY are precision-engineered in a state-of-the-art machining center. Utilizing specialized heat treatment technology, we achieve a material hardness range of HB 364-444, which significantly reduces the likelihood of deformation.
